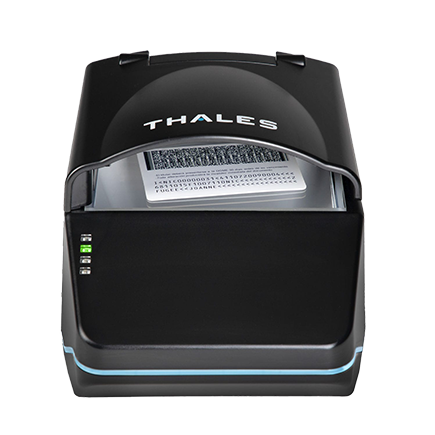

Thales Gemalto Document Reader QS2000

Rapid ID data capture and client processing

Thales Gemalto Document Reader QS2000 is a highly reliable and durable full-page document reader, part of our document reader solutions, designed specifically for commercial markets.

Its compact size and contemporary design combined with fast data capture of passports, identity documents, driving licenses and other IDs makes it ideal for commercial applications when you just have a couple of seconds for:

  • data entry
  • age verification,
  • customer onboarding,
  • entitlement verification prior to purchase or employment,
  • and visitor management.

Easy and convenient document scanning

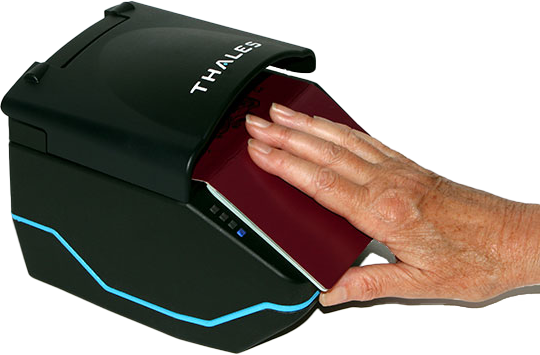

The Gemalto Document Reader QS2000 has a large open document area and an ergonomic sloping front making document scanning a breeze.

Optional RFID support allows the user to view and verify the embedded chip data in ePassports, eIDs and driving licences, helping ensure the document is genuine.

Machine-readable zone (MRZ) and barcode reading is also included, automatically capturing the document and decoding it.

Designed to offer high reliability in environments requiring image capture and data entry:

  • hotels,
  • casinos,
  • liquor stores,
  • bars,
  • and rental car companies

Details of the Gemalto Document Reader QS2000 and key standard features

  • Optional RFID chip reading for better assurance of document authenticity
  • Accurate information capture adhering to strict identity characteristics as set out by the organization

Major features of the Gemalto Document Reader QS2000:

  • Multiple document reading and imaging using true-color image matching
  • Dual wavelength illumination – Visible and Infra-Red
  • Anywhere placement of ID cards
  • 400 DPI -resolution
  • OCR data capture of the Machine Readable Zone (MRZ)
  • Complete access to data and images captured via Software Development Kit (SDK)
  • Auto-triggering of document capture – presence of document is automatically detected using visible light
  • Windows® 7, Windows® 8.1, Windows® 10, Windows® 11, macOS and Linux® compatible
  • USB 2.0 or USB 3 high speed compatible via high speed USB 3.2 Gen 1 Type-C™ host port
  • Rugged design, no moving parts and internally sealed optical chamber to prevent dust ingress
  • Chemically Strengthened Glass minimises scratching and provides advanced durability
  • Powered from a single USB 500mA port
  • Optional Chinese NID card reading

Additional Information

Near IR B900:
860nm peak
White visible:

Standard 400 DPI image resolution
RGB 24 bit color system

Windows® 7, Windows® 8.1, Windows® 10, macOS and Linux®

Standard Dimensions
18.5 cm (7.3”)
15.3 cm (6.0”)
Height with light shield:
13.2 cm (5.2”)
0.8 kg (1.7 lbs)
Window size
125 x 90 mm

10 to 95% (R.H. non-condensing)
Operating: -10º to 55º C (14º to 131º F);
Storage: -20º to 60º C (-4º to 140º F)
IP54 rating for dust and water ingress protection (pending)
Shock and vibration to IEC60068-2-27 and IEC60068-2-64
