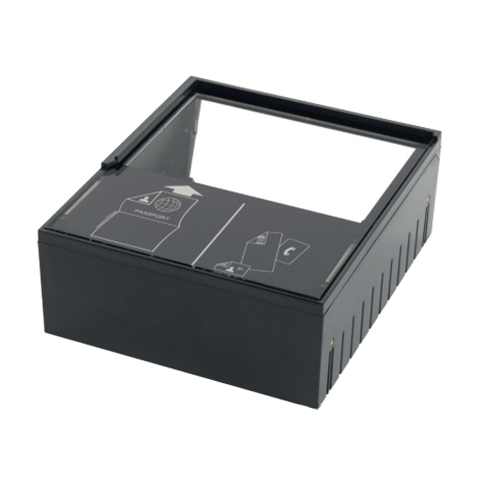

Thales Gemalto OEM Document Reader AT10K

AT10K for integrators

For integrators we have a special model the THALES OEM Document Reader AT10K which is designed with a low profile and simple shape to make it ideal for integration with self-service kiosks, counters and eGates at airports and other locations such as railway and cruise terminals. The OEM model inspects and images travel documents, including electronic travel documents and 1D and 2D barcodes used by the airline industry on boarding passes and cell phones.

The design of the OEM AT10K is based on new research using inexperienced passengers found in a self-service environment. Along with detailed and exhaustive analysis of field experience and numerous deployed projects THALES has designed a new “landing light” LED feedback arrangement which naturally encourages the correct placement and use of the reader increasing the first time read rate even when used by infrequent or hesitant travelers.

Contact TSSL

Features of the OEM reader

  • Reads and images multiple types of documents in Visible, Infra-red and Ultra-violet light using 24-bit colour and true-colour image matching technology
  • High resolution 550 dpi option includes a high-speed USB 3.1 host port enabling fast image captures
  • Reads documents and barcodes placed at any rotation on the glass and presents images correct way up based on features in the document
  • Anti-glare technology eliminates image artefacts due to laminate or OVDs
  • OCR data capture of the Machine Readable Zone (MRZ)
  • Auto-triggering of document capture – the presence of document is automatically detected
  • Hoodless operation in many environments
  • Internally sealed optical chamber to prevent dust ingress
  • Low scratch, low-iron, fully bonded glass with oleophobic coating for low maintenance & easy cleaning
  • Chemically strengthened glass without oleophobic coating option for advanced durability
  • Side and bottom mounting points for easy integration into kiosks and desks
  • Powered from USB or external power supply
  • Complete access to OCR data and images captured via Software Development Kit (SDK)
  • Access to images as BMP, PNG or JPEG format
  • Hub – 2 ports for external peripherals
  • Optional document spine hold-down clip and optional hood

Additional Information

Near IR B900:
880nm, +/-5%
White visible:
Ultraviolet (UVA):

High Resolution 550 DPI option, 10 Megapixel sensor
RGB 24 bit color system

Windows® 7, Windows® 8.1, Windows® 10, macOS and Linux®

Standard Dimensions
17.1 cm (6.7”)
14.5 cm (5.7”)
6.5 cm (2.6”)
1.1 kg (2.4 lbs)

20 to 95% (R.H. non-condensing)
-10º to 50º C operating; -20º to 50º C storage
IP52 rating for dust ingress protection in the optical chamber (pending)
