Access IS ATOM ® Document Reader

Full-page Document Imager and eMRTD Reader

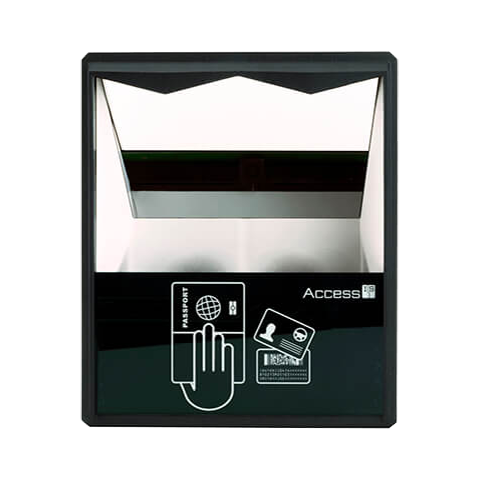

The ATOM® Document Reader is a state-of-the-art, multi-illumination eMRTD reader. Representing a major leap forward in aesthetic design with dramatically improved performance, this device sets the ID document reader standard for years to come! Its innovative design enables the capture of multiple high-resolution, uncompressed images (Visible, IR & UV). In comparison to existing scanners, the transaction time is significantly reduced delivering productivity and cost savings. ATOM’s design sets it apart from other readers and allows for both desktop use and simple, elegant into countertop and kiosk integration. Its innovative ‘shark fin’ document guides ensure that even the most widely travelled documents quickly slide onto the glass, easing down bent corners for a perfect read. Like its predecessors, ATOM still delivers lightning fast MRZ decoding, whilst simultaneously reading RFID data from eDocuments, including those meeting the latest ICAO LDS standards. Additionally, high performance 1D/2D barcode reading ensures that the ATOM delivers a rich feature-set. The ATOM can be supplied with its innovative Expansion Dock to provide either contact smart card reading, magnetic stripe reading or both. The elegant ‘drop-in’ design means that the unit can be supplied already mated, or retrofitted in the field in just a few seconds.

Contact TSSL


  • Ultra-fast operation delivers time and cost savings
  • Captures high-resolution images in multiple wavelengths – visible, IR and UV
  • Reads MRZ from ICAO 9303 compliant documents, including Passports, e-Passports, ID cards and visas as well as ISO 18013 compliant driving licenses
  • ISO 14443 contactless RFID reader/writer supports ICAO LDS standards, including BAC, PA, AA, EAC and SAC
  • Reads 1D/2D barcodes from smartphones, tablets & paper
  • Operates without external power supply using USB 3.0
  • Optional Expansion Dock provides contact smart card & MSR reading, 2 additional USB ports and 2 SAM modules.

Additional Information

Glass Platen:
4mm thick toughened, with anti-reflective and oleophobic coatings
Active scan area:
130mm x 94mm
Illumination sources:
visible/white, near IR B900, UV LED’s
500 DPI

Size (WxDxH):
143 x 171 x 65mm
With Expansion Dock:
165 x 171 x 79mm
Black PC/ABS
BS EN60068-2-75 & IEC 62262:2002, rated to 6.375J impact
750g excl cable/PSU
Kensington® security slot

Operating 0 OC to 50 OC
0 OC to 60 OC
0 to 95% non-condensing
FCC Part 15C Class B ;
CE EMC Class B, CE Low Voltage Directive;
IEC 62471: 2006 - Exempt Class;
BS EN 60950-1:2006+A2:2013

Communications & host
USB 3.0 (Compatible USB 2.0)
Host Minimum:
Windows 7 & above, 32/64 bit;
Pentium Core-i3 2.1GHz & 4GB RAM
Host Recommended:
Win 7 & above, 32/64 bit;
Pentium Core-i5 3.3GHz & 8GB RAM

Barcode reading (option)
Linear (1D):
EAN / UPC, Code 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Code 39, Code 128
IATA resolution 792, PDF417, Aztec, DataMatrix and QR codes

Power supply
+5 VDC via DC jack (Only when connected via USB 2.0 Interface)
