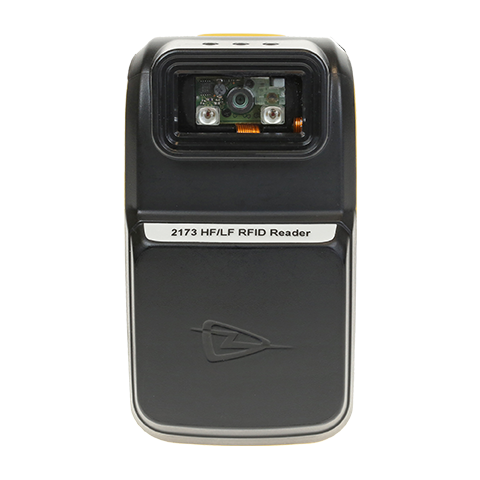

2173 Bluetooth® HF/LF RFID Reader


Description

The 2173 Bluetooth® HF/LF RFID Reader enables a compatible Bluetooth® host device to read and write a wide variety of HF and LF RFID transponders as well as capture 1D and 2D barcodes (imager version only). These can be ‘typed’ into any application on the host device using the Bluetooth® HID keyboard mode. Alternatively, the reader can be commanded from an app on the host device. As the 2173 uses the existing TSL® ASCII 2 Protocol, developers can take advantage of the comprehensive, free SDKs provided by TSL® to develop in Xamarin, Java, Objective C or .NET.



Contact TSSL

Features:


Multi-Band RFID Reading and Writing

Combined LF RFID, HF RFID and NFC reading and writing in an incredibly compact and lightweight device.


Multi-ISO RFID

Supports multiple ISO industry standards including ISO15693,ISO14443(A/B) and ISO18092 ECMA-340 (NFC).


Batch Data Collection

Removable high capacity Micro SD data card and real time clock for extended batch data collection with time stamp independent of the host connection.


OS Independence

The reader is compatible with Android, iOS and Windows.


High Performance Barcod Scanning

Integrated 2D imaging engine provides class leading barcode scan performance via its unique patent pending fast pulse illumination which delivers outstanding motion tolerance and class leading 1D and 2D data capture.

Compatible With

Android

iOS

Windows

macOS

Bluetooth®

Additional Information

Physical and Environmental Characteristics
Dimensions:
10.2 cm x 5.5 cm x 5.6 cm.
Weight:
157 g / 5.5 oz.
User input:
Two Trigger buttons.
User feedback:
Speaker, vibration motor, three LEDs.
Power:
Removable, rechargeable 3.7 volt Lithium Polymer 1130 mAh battery pack, 4.2 watt hrs
Enclosure materials:
Polycarbonate.

RFID Performance
Frequency Range:
125/134.2 kHz (LF) / 13.56 MHz (HF).
Read Distance:
LF and HF: Up to 100 mm / 4” (dependent on transponder type).
RF Transmission Speed:
HF Air: up to 848 kbit/s.
Standards supported:
ISO14443A, ISO14443B, ISO18092
ECMA-340 (NFC), ISO15693 plus many 125 kHz, 134.2 kHz standards.

Communication
Bluetooth®:
Bluetooth® Version 4.1.
Bluetooth® Profiles:
SPP Profile; HID Profile; Apple iAP2; Bluetooth® Low Energy.
Bluetooth® Range:
30m.
Bluetooth® Pairing:
Simple Secure Pairing, NFC OOB Pairing.
Bluetooth® Power:
Class 2.

Barcode Scanning
Barcode module:
Optional 2D imager.
Sensor Resolution:
752 x 480 pixels.
Field of View:
Horizontal: 40°, Vertical: 25°.
Focal Distance:
SR: 8 in. DL: 5.3 in. HD: 2.9 in.
Aiming LED (VLD):
655 ±10 nm Laser.
Illumination Element:
625 ±5 nm LEDs (2x).
Min. Print Contrast:
Minimum 25%.
Symbologies Supported:
1D: All major codes
2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal
Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX).
Ranges:
DL Focus:
5 mil Code 39
100% UPC
5 mil PDF417
Near:
1.4 in./36 mm
1.6 in./41 mm
2.8 in./71 mm
Far:
7.3 in./185 mm
12 in./305 mm
4.5 in./114 mm
