2128L UHF RFID Reader with High Gain Linear Antenna and ePop-Loq®


Maximum Performance

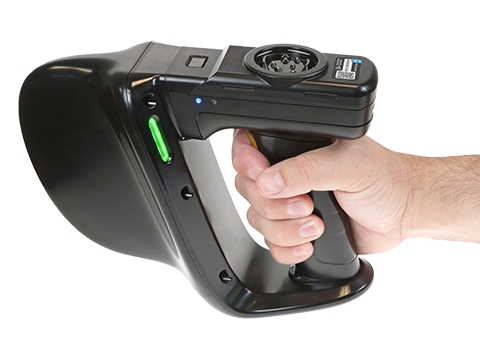

The 2128L UHF RFID Reader builds upon the 2128 UHF Reader by including a larger, fixed High Gain Linear antenna for up to 15m (49ft) of read range. The patented TSL® ePop-Loq® connector allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal. The unique ePop-Loq® system is also designed to safely separate when the reader is subject to large impacts, such as when dropped.



Contact TSSL

Enhanced Modes of Operation

The 2128L UHF RFID Reader can provide in-reader tag de-duplication for more than 50,000 unique tags from more than 1 million tag reads. In addition the Reader can store on-board (using the embedded micro SD card) more than 500 million unique tags with date and time stamping for a truly powerful batch collection mode of operation.

Sophisticated user feedback and embedded processes and accelerometers provide the most configurable, in-depth and capable ‘search and find’ features currently available.


Powerful and Comprehensive Software Development Tools

The 2128L UHF Reader boasts unrivalled levels of RFID read/write performance, particularly in applications where longer read range is required or where there is a very dense collection of tags.

Applications developed for the 1128, 2128, 2128P 1153, 1166 or 2166 UHF RFID Readers can easily be configured to work with the 2128L, as all of these readers share TSL’s unique ‘ASCII 2 Protocol’. This sophisticated, parameterised set of commands carry out multiple actions locally within the reader. This approach enables multiple tag operations to be executed using simple pre-configured ASCII 2 commands which not only speeds integration of the reader into applications but also makes application development easier.


Ultra Secure Data Gathering Option

As the ePop-Loq® system provides a wired connection between the host device and RFID Reader, sensitive data can be given that extra level of security by avoiding the use of wireless data transfer. The 2128L supports batch data collection and is equipped with a Micro SD socket and a real time clock. Up to 500 million transponder EPCs can be stored on a 32GB Micro SD card (optional purchase). This provides the ability to collect and log data even if USB or Bluetooth® communication channels are not available. Docking the 2128L then enables this data to be synchronised with a PC.

Single Point Charge Solution

The 2128L Docking Station allows charging of both the 2128L UHF RFID Reader and a smartphone or handheld terminal attached via an ePop-Loq® mount. This unique design can accommodate a wide range of devices from many handheld and smartphone manufacturers. The 2128L Docking Station Kit is supplied separately and includes the docking station, power supply unit and a USB data cable.


Flexible Bluetooth® Connectivity

The 2128L supports both Bluetooth® Classic as well as Bluetooth® Low Energy (BLE). The reader can be operated in Serial Port Profile (SPP) or Human Interface Device mode (HID), as well as supporting iApp2 for Apple iOS devices. The reader also supports an automatic re-connect mode for both Android and Apple devices.

Features:

  • Wide Area Scanning: High Performance Linearly Polarised UHF RFID Antenna enables a wide beam shape ideal for retail applications.
  • Hardware Platform Independence: Operates with wide variety of Bluetooth® wireless technology enabled host devices from smartphones to tablets, laptops and desktop computers.
  • OS Independence: The reader is compatible with Android, iOS and Windows.
  • Integrated ePop-Loq® Socket: A smarter way of mounting devices to the UHF RFID reader.
  • Bluetooth LE Support: Lower power consumption and longer battery life.
  • Direct USB Connection: For increased security of data transfer via ePop-Loq® mounts.
  • Additional Information

    Physical and Environmental Characteristics
    Dimensions:
    240 x 88 x 180 mm (LxWxH).
    Weight:
    700 g (including integrated battery).
    User input:
    Trigger button.
    User feedback:
    Speaker, vibration motor, LED - user configurable.
    Power:
    Integrated 3.6 V 6700 mAh Lithium Polymer pack, 27 Watt hrs.
    Input Rating:
    5.2VDC, 4.0A.
    Enclosure materials:
    Polycarbonate.

    RFID Performance
    Standards supported:
    EPC Class 1 Gen 2.
    Nominal read range:
    Up to 15 m (49 ft).
    Nominal write range:
    Up to 6 m (19.6 ft).
    Antenna:
    Linearly Polarised with field shaping.
    Frequency Range:
    865 - 868 MHz (EX1 variant).
    902 - 928 MHz (AX1 variant).
    Maximum Output Power:
    35 dBm EIRP.

    Communication
    Bluetooth®:
    Bluetooth® Version 4.2.
    Bluetooth® Profiles:
    SPP Profile, HID Profile, Apple iAP2, Bluetooth® Low Energy.
    Bluetooth® Range:
    Up to 100m.
    Bluetooth® Pairing:
    Simple Secure Pairing, NFC OOB Pairing.
    Direct USB:
    USB connection to handheld terminal via ePop-Loq® cases (separate purchase).
