1128 Bluetooth® UHF RFID Reader


High Performance UHF Reader for iOS & Android

The new 1128 Bluetooth® UHF RFID Reader is designed to read and write to EPC Class 1 Gen 2 (ISO18000-6C) UHF transponders and communicate with a variety of host devices via Bluetooth® wireless technology. With its Impinj R2000 core and range of interchangeable high performance antennas the 1128 performs like no other reader, giving the user the highest levels of flexibility currently available in today’s market. The reader can be configured with class leading high performance 2D data scanning to bring unparalleled data collection capabilities to connected devices.



Contact TSSL

Demonstration Software

Our ‘RFID Explorer’ App demonstrates the performance, functionality and versatility of the 1128 Bluetooth® UHF RFID Reader. It also serves as demonstration of TSL’s powerful ASCII 2 protocol. It is available for iOS, Android™ and Windows Phone. The iOS version of RFID Explorer is compatible with iPhone® 3GS, iPhone 4, iPhone 4S, iPhone 5, iPod touch® (3rd generation), iPod touch (4th generation), iPod touch (5th generation) and iPad®, and requires iOS 5.1 or later. RFID Explorer is available to download from the locations above. For Windows Mobile users, we have a ‘UHF Demo’ app available on the Product Downloads page.



Integrate With Ease

The 1128 Bluetooth® UHF RFID Reader incorporates TSL’s unique ASCII protocol for faster and easier application development. This sophisticated parameterised ASCII protocol provides the developer a powerful set of commands that carry out multiple actions locally within the reader. This approach enables multiple tag operations executed using simple pre-configured ASCII commands which speeds integration of the reader into applications.

Multi-Platform

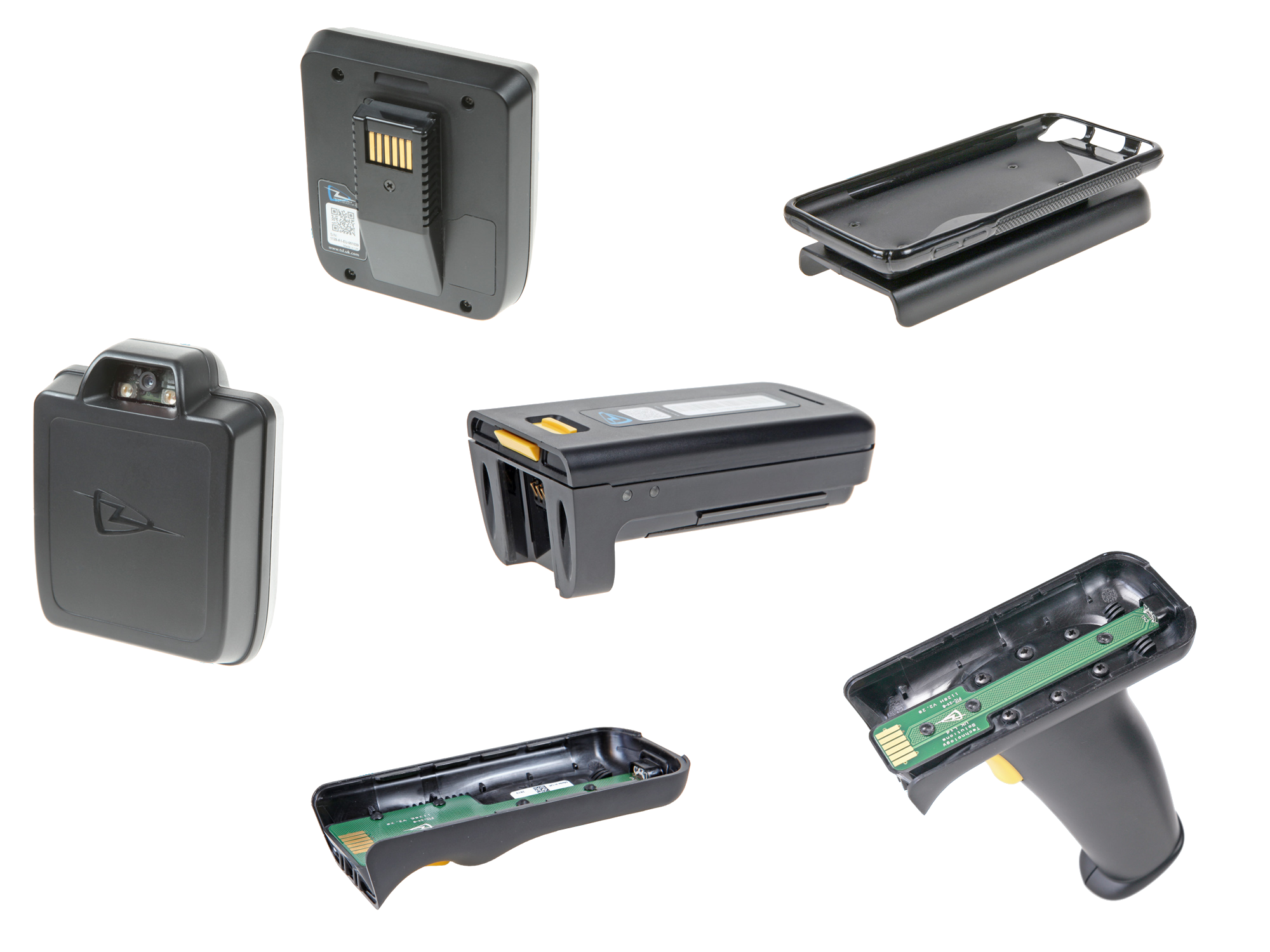

The 1128 brings high performance UHF RFID scanning to devices running a wide range of Operating Systems including Android, iOS, Windows Mobile, WinCE, and Windows XP/Vista/7/8. The 1128 Bluetooth® UHF RFID Reader is compatible with Bluetooth® enabled host devices including enterprise handhelds, consumer phones, touchscreen MP3 players, tablets and PCs. Almost any small device can be attached to the 1128 Bluetooth® UHF RFID Reader using a combination of the 1128 Accessory Mount and commercially available device cases. The Accessory Mount securely holds the device in place, yet slides on and off the reader body in one quick action. Customized mounts are also available by special request. The diagram below illustrated the different attachment methods available:

Video


Multi-Platform Compatibility

The 1128 brings high performance UHF RFID scanning to devices running a wide range of Operating Systems including Android, iOS, and Windows. The 1128 Bluetooth® UHF RFID Reader is compatible with Bluetooth® enabled host devices including enterprise handhelds, consumer phones, touchscreen MP3 players, tablets and PCs.

The TSL® UHF RFID Reader Range

You can compare the specifications of all our Mobile UHF RFID Readers by clicking on the image above.

Additional Information

Physical and Environmental Characteristics
Dimensions (with trigger handle):
16.0cm x 7.7cm x 16.9cm (LxWxH)
Dimensions (with slimline grip):
16.0cm x 7.7cm x 9.7cm (LxWxH)
Weight (including battery & trigger handle):
380g (13.4 oz)
Power:
Removable, rechargeable 4.2 volt Lithium Polymer 2200 mAh battery pack, 8.4 watt hrs
Enclosure materials:
Black Lexan EXL9330 PC Yellow Lexan 943A PC

Performance Characteristics
Communication protocols:
TSL ABC (Parameterised ASCII command set) Impinj binary
Memory:
Supports up to 32 GB Micro SD/SDHC card
Compatible Host devices (Bluetooth®):
Android, iOS, Windows CE, Windows Mobile 5/6.1/6.5 or Windows XP/Vista/7. Host device must have Bluetooth? functionality.
Compatible Host devices (USB):
Any USB host with FTDI VCP driver support (Windows, Linux, Mac, Android)

Environmental
Operating Temperature:
-4°F to 140°F / -20°C to 60°C
Charging Temperature:
41°F to 104°F / 5°C to 40°C
Storage Temperature:
-40°F to 158°F /-40°C to 70°C
Charging Temperature:
41°F to 104°F / 5°C to 40°C
Humidity:
5% to 95% non-condensing
Drop specification:
Multiple drops to concrete: 4 ft./1.2 m ambient, 3ft / 0.9m across the operating temperature range
Tumble:
500 0.5 metre tumbles at room temperature (1,000 cycles)
Environmental Sealing:
IP54
Electrostatic Discharge:
±15kVdc air discharge; ±8kVdc contact discharge
MIL-STD 810F:
Meets and exceeds applicable MIL-STD 810F for drop, tumble and sealing

RFID Performance
Standards supported:
EPC Class 1 Gen 2
Nominal read range2:
up to 13 ft. / up to 4 m
Nominal write range2:
up to 4 ft./ up to 1.22 m
Field:
150-degree forward facing (approx.) measured from front of device
Antenna:
Detachable, Circularly Polarized with optional 2D scanner
Frequency Range:
EU: 865-868MHz; US: 902-928MHz
Output Power:
10mW to 800mW
Antenna Options:
High Performance CP High Performance CP with 2D Imager Custom antennas available

Barcode Scanning
Imager:
Motorola SE4500 2D imager
Field of View:
Horizontal: 40°, Vertical: 25°
Symbologies Supported:
1D: All major codes 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)

Bluetooth®
Bluetooth®:
Bluetooth Version 2.1v
Bluetooth®:
Bluetooth Version 2.1 SPP profile HID Profile (future) Apple iAP
Bluetooth®Class:
Class 2
